The LMBS-Basic laser module is designed for easy integration into automated production lines. Machining layouts are created in the multiCAM CAD/CAM software and transferred to the control system. Multiple layouts can be preloaded and selected via input commands. The module supports both stand-alone and PC-controlled operation. External I/O enables the start/stop of programmes as well as monitoring of the system status. Communication is possible via Ethernet or Profibus. For improved durability, we recommend the optional dust protection upgrade, which offers increased resistance to particle contamination.

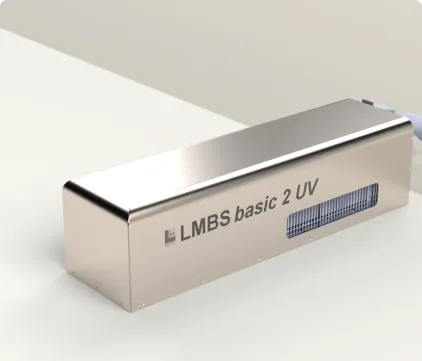

The LMBS basic 2 laser module is highly versatile and can be equipped with a wide range of laser types and technical variants. It can therefore be optimally adapted to the specific requirements of your process.
The module supports laser powers from 1 to 200 watts and covers a wide wavelength range from UV to FIR. It can be operated with either air or water cooling and is ideal for integration into higher-level process flows. This makes it suitable for numerous industrial applications. The LMBS basic 2 is available in various versions that can be individually tailored to your needs. Should you have specific requirements regarding laser power, we also offer bespoke solutions on request.
| Laser Type | DPSS Laser 355 nm |
| Optical Power | 1-40 W |
| Optics | F-Theta f254 or on request (other focal lengths or telecentric lenses) |
| Scanner Field | 175 x 175 mm or on request (100 x 100 mm, etc.) |
| Working Distance | 285 mm or on request (221 mm, etc.) |
| Housing W x H x D | 802 x 232 x 235 mm |
| Control Cabinet W x H x D | 800 x 800 x 300 mm (including controller, safety components, power supply, etc.); connection of up to 3 modules |
| Weight | 60 kg |
| Cable Length (from module to control cabinet) | 5 m or on request |
| Cooling | Water / Water or Water / Air |
| Special Features & Extras | Focus plane adjustment via Z-shift, image recognition, on-the-fly adjustment, extraction, chiller, power measurement and much more. |
| Laser Type | 1064 nm fiber laser (ns or ps laser pulses) |
| Optical Power | 20-3000 W |
| Optics | F-Theta f160 or on request (other focal lengths or telecentric lenses) |
| Scanner Field | 110 x 119 mm or on request (175 x 175 mm, etc.) |
| Working Distance | 185 mm |
| Housing W x H x D | 707 x 287 x 202 mm |
| Control Cabinet W x H x D | 800 x 800 x 300 mm (including controller, safety components, power supply, etc.); connection of up to 3 modules |
| Weight | 35 kg |
| Cable Length (from module to control cabinet) | 5 m or on request |
| Cooling | Water / Water or Water / Air or Air / Air |
| Special Features & Extras | Focus plane adjustment via Z-shift, image recognition, on-the-fly adjustment, extraction, chiller, power measurement and much more. |
| Laser Type | CO2 Laser 10.600 nm |
| Optical Power | 30-200 W |
| Optics | F-theta optics with a fine laser spot for high process accuracy (+/- 0.02 mm) |
| Scanner Field | 160 x 160 mm or on request (210 x 210 mm, etc.) |
| Working Distance | On request |
| Housing W x H x D | 1350 x 450 x 270 mm |
| Control Cabinet W x H x D | 800 x 800 x 300 mm (including controller, safety components, power supply, etc.); connection of up to 3 modules |
| Weight | 85 kg |
| Cable Length (from module to control cabinet) | 5 m oder auf Anfrage |
| Cooling | Wasser / Wasser oder Wasser / Luft oder Luft / Luft |
| Special Features & Extras | Focus adjustment via Z-shift, image recognition, on-the-fly operation, extraction system, chiller, power measurement, enhanced double-shielded dust protection for harsh environments, and much more. |
| Feature | Description |
|---|---|
| Laser Optics | Use of F-theta optics (including telecentric lenses) to ensure a consistently high-quality machining image with sharp features across the entire machining area |
| Focus-Shifter | Adjustment of the laser working distance for a precise processing spot |
| Image recognition | Automatic product recognition, position correction, scaling, reporting and process monitoring |
| Laser power measurement | For processes that require a constant laser power |
| Distance measurement | For measuring the working distance with variable products |
| Remote Control | Control of the laser module by a higher-level system when integrated into larger systems or processes. Control via fieldbus, LAN or digital interface is possible |
| Housing seal | Precautions for environments with high levels of dust |
