Spectrometers

Our high resolution Echelle spectrometers work across a broad spectral range (UV-VIS-NIR) and are ideally suited for applications such as LIBS, Raman spectroscopy, material analysis and quality control. They are very compact in seize and can be tailored towards many applications.

Focal length max 10000 mm

Resolution 2,5 M.-10 M.

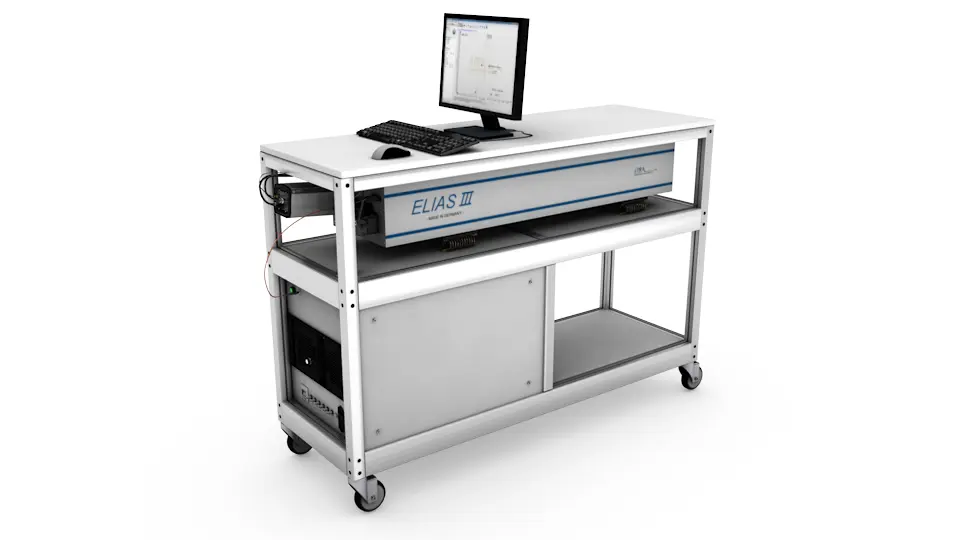

The ELIAS Emission Line Analyzing Spectrometer models belong to a worldwide unique monochromator series, with which a spectrally high-resolution quantitative measurement of narrowband laser lines with an intensity dynamic range…

Focal length 400mm

Resolution 50.000

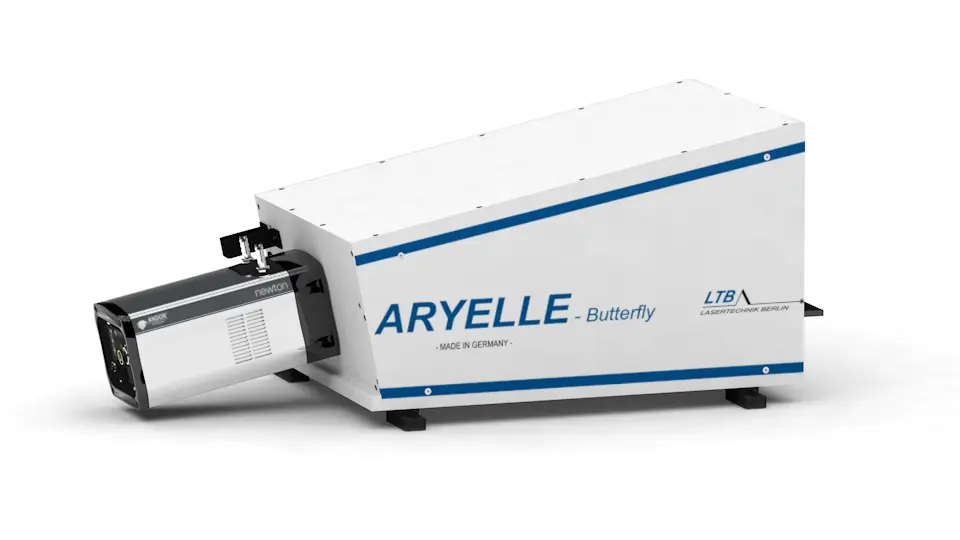

The ARYELLE Butterfly is a special kind of echelle double spectrograph from the ARraY echELLE series. Combined in a compact housing, two spectrally separated ARYELLE 400 spectrometers sequentially image two-dimensional…

Focal length 400mm

Resolution 50.000

With a focal length of 400 mm and a focal ratio of f/10, the ARYELLE 400 is the spectrally highest-resolution wide-range spectrometer in the ARraY echELLE series. The patented optical…

Focal length max 1000 mm

Resolution 60.000-200.000

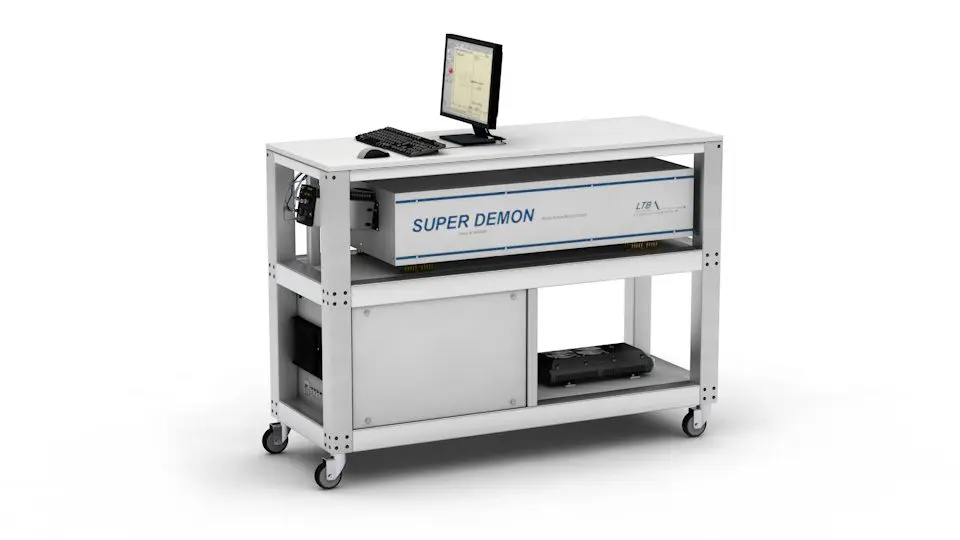

The DEMON is a double-echelle monochromator with high temporal and spectral resolution. It consists of an optomechanically motorized and thermally very stable echelle spectrometer with an upstream prism monochromator for…

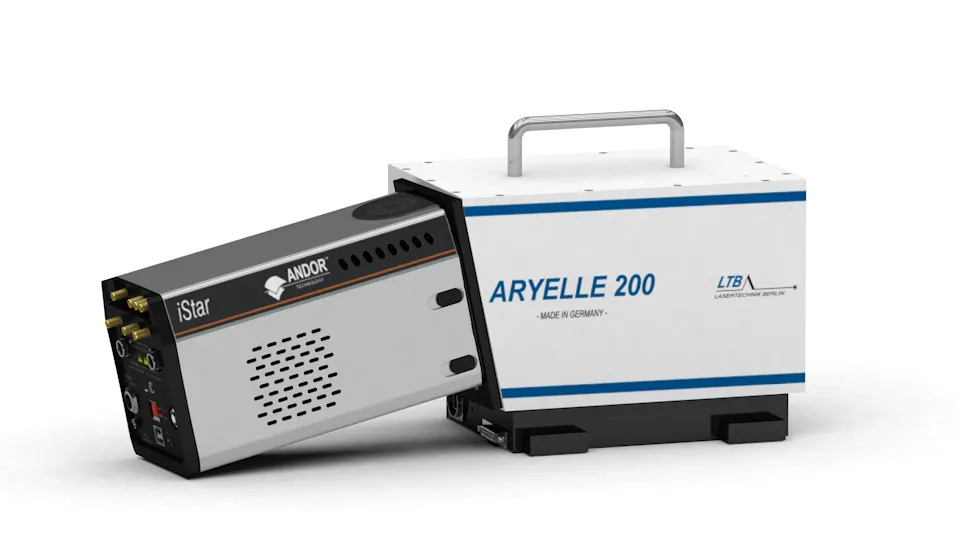

Focal length 200mm

Resolution 9.000

With the Sophi software supplied, all functions of the spectrometer-detector unit are controlled via an intuitive graphical user interface with an integrated script language for automated measurement sequences. Optionally, the…
