ARYELLE 400 spectrometer

The flagship of ARYELLE echelle spectrometer series with very high spectral resolution in the VUV or UV-VIS-NIR wide-range with 400 mm focal length – for precise elemental analysis with LIBS and Raman spectroscopy.

  • Highly sensitive with high wavelength stability
  • High spectral resolution (9,000-50,000)
  • Large simultaneous wavelength range
  • Suitable with various detectors (CCD, ICCD)
  • High light throughput


The ARYELLE 400 with a focal length of 400 mm and an aperture of f/10 features the highest spectral resolution of the wide-range spectrometer ARraY echELLE series. The patented optical setup with echelle grating, prism, imaging optics and entrance slit can individually be adapted to different customer applications. Depending on the required simultaneously detectable wavelength range, the ARYELLE 400 provides the measurement of two-dimensional echelle spectra. At standard spectrometer configuration with 50 µm entrance slit, a spectral resolving power of up to 30,000 for the VUV range (175-330 nm) or up to 15,000 for the UV-VIS-NIR range (330-850 nm) can be achieved. The optomechanical setup is designed to fit various CCD and ICCD cameras. Automatic recalibration of the wavelength scale is provided by a mercury lamp and an internal shutter.
ARYELLE optical setup

The supplied operating software Sophi with optional LabVIEW library allows fully control of all spectrometer-detector functions via graphic user interface and provides automated measurement routines with an integrated scripting language. All lines of the gained spectrum are automatically analyzed with the integrated atomic spectra data base and qualitatively assigned to the corresponding elements. Quantitative analysis is based on calibration with reference materials.


Optical design echelle spectrograph
Aperture f/10
Focal length 400 mm
Slit width 50 µm
Absolute accuracy spectral resolution / 4
Dynamic range 15 bit, A/D conversion 16 bit
Light coupling SMA fiber coupling or mirror optics
Wavelength calibration with mercury lamp
Computer PC incl. TFT or laptop with Microsoft Windows
Software Sophi, LabVIEW library optional
Dimensions without detector (L x W x H) (438 x 200 x 232) mm
Weight without detector 12 kg


Setup 1 2 3 4 5 6
Wavelength range1 190-330 nm 330-850 nm 192-930 nm 250-900 nm 192-433 nm 425-750 nm
Spectral resolving power
λ/min. measurable FWHM1
30,000 15,000 15,000 45,000 14,000 20,000
Spectral resolution1,2 6-11 pm 22-57 pm 13-62 pm 5.6-20 pm 13-31 pm 21-37 pm
Detector resolution 2,048 x 512 px 2,048 x 512 px 2,048 x 2,048 px 2,048 x 2,048 px 1,024 x 1,024 px 1,024 x 1,024 px
Image area 27.6 x 6.9 mm² 27.6 x 6.9 mm² 27.6 x 27.6 mm² 27.6 x 27.6 mm² 13.3 x 13.3 mm² 13.3 x 13.3 mm²
Chopper yes yes yes yes no no
Step width, min. 0.1 µs 0.1 µs 0.1 µs 0.1 µs 1 ns 1 ns
Gate width 5 ns 5 ns


1 Depending on the chosen grating and prism, other ranges possible (down to 175 nm)
2 Depending on the slit width, other widths possible

Other spectral resolutions, wavelength ranges, CCD and ICCD detectors on request
Subject to technical changes without notice

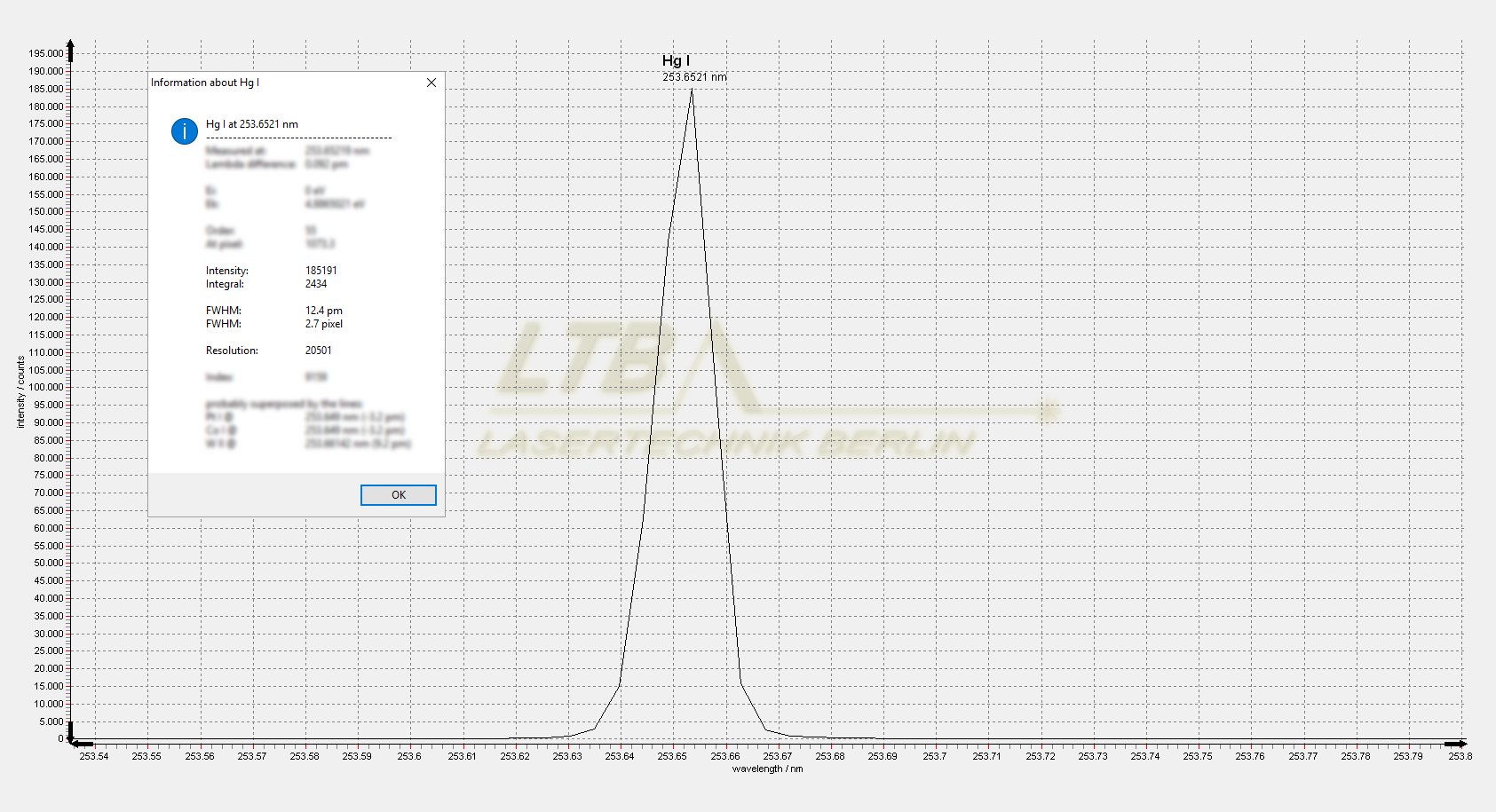

ARYELLE 400 spectrum HgARYELLE 400 spectrum Hg lamp @ 253 nm

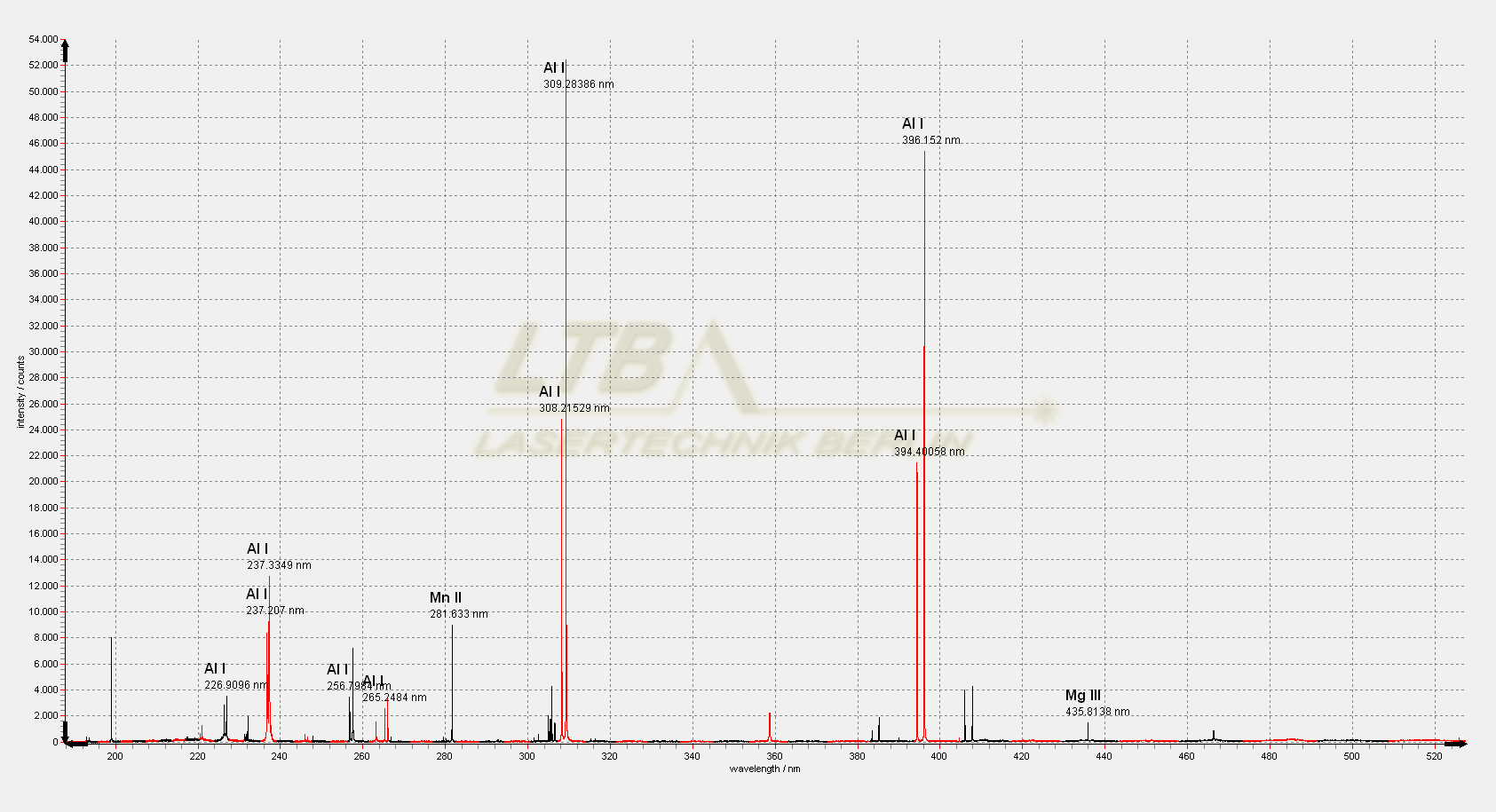

ARYELLE 400 LIBS spectrum AlARYELLE 400 LIBS spectrum aluminium sample
